The U-Tube Viscometer measures the viscosity of opaque fluids such as bitumen
The U-Tube Viscometer measures the viscosity of opaque fluids such as bitumen
Laboratory Reference Material
On customers cost
Guaranteed

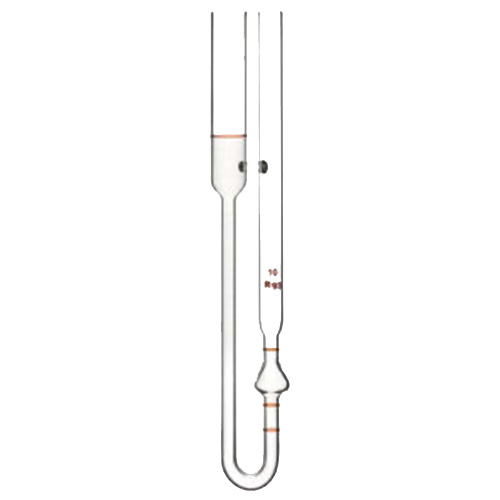

U-Tube Viscometer (Glass Capillary Viscometer)
The U-Tube Viscometer is a type of glass tube widely used for measuring the viscosity of fluids.
Viscosity, represents the resistance of a fluid to flow.
Low viscosity: The fluid flows easily (e.g., water).
High viscosity: The fluid resists flow (e.g., honey at room temperature or bitumen at 80–90 °C).
To fully understand viscosity, it’s important to differentiate between Newtonian and non-Newtonian fluids.
Newtonian fluids: Viscosity is independent of temperature.
Example: Water has a constant viscosity whether at 10 °C or 80 °C.
Non-Newtonian fluids: Viscosity changes with temperature or shear rate.
Example: Bitumen is nearly solid at 25 °C but becomes much less viscous than water at 135 °C.
By combining these concepts, glass viscometers have been developed to accurately measure viscosity at specific temperatures and conditions.
The U-Tube Viscometer (Reversed Flow U-Tube) is particularly suitable for opaque fluids like bitumen.
Primarily used for kinematic viscosity tests at 135 °C.
Different tube numbers are selected based on the expected viscosity range of the fluid.
This viscometer allows testers to obtain precise viscosity values, which are crucial for quality control and research in asphalt, petroleum, and chemical industries.
If you want, I can translate the viscosity ranges table and the U-Tube specifications from your next section into English to complete this product description.
Main Applications of U-Tube Viscometer
Measurement of kinematic viscosity of bitumen and opaque petroleum products.
Viscosity testing at controlled temperatures (typically 135 °C).
Calculation of kinematic viscosity based on the flow time of the fluid.
Suitable for opaque liquids up to 300,000 mm²/s (cSt).
Used in standard laboratories, quality control labs, and refineries.
Body Material: Heat-resistant borosilicate glass.
Designed according to BS U-Tube Modified Reverse Flow model.
Suitable for precise viscosity tests in temperature-controlled viscosity baths.
High resistance to thermal shock.
Capable of measuring high-viscosity fluids such as bitumen.
Fully compliant with national and international standards.
Supplied with a valid calibration certificate
Economically priced.
Fast delivery in requested quantities.
Choose the tube number based on:
Viscosity range of the fluid.
Type of test (bitumen or petroleum products).
Test temperature in the viscosity bath.
Offering the most standard U-Tube viscometers.
Full inventory of models and tube numbers.
Includes valid calibration certificates from the Iranian Standards Organization.
Expert support for selecting the appropriate model.
Suitable for quality control laboratories, petroleum and bitumen labs, and research centers.
| Weight | 0,01 kg |
|---|---|
| Dimensions | 22 × 5 × 3 cm |
| Measurement Accuracy | High accuracy and repeatability. |
| Compatibility | Resistant to acidic and laboratory environments. |
| Available U-Tube Numbers / Sizes | Size 2, Size 3, Size 4, Size 5, Size 6, Size 7, Size 8, Size 9. |
